Baldwin Shock Bleeder
Professional shock bleeding without the expensive machine in only 20 minutes and zero air left.
Remove trapped air, refill serviceable dampers with fresh oil and control every compression and vacuum cycle yourself. The Baldwin Shock Bleeder gives workshops, race teams and capable home mechanics a compact system for 479,99€
●For experienced suspension technicians and home mechanics
●Workshop, mobile and trackside
OPERATION
Manual vacuum + compression
CAPACITY
400 ml
FORMAT
Compact + portable
CONNECTION
DN5 · G1/8
BUILT FOR REAL SERVICE WORK
Ready for the bench, service van or the paddock.
Use it as your regular bleeding setup, take it to race or keep it ready when your automatic station is busy.
The Baldwin Shock Bleeder adds useful capacity without complicating the rest of your workflow.
The Baldwin Shock Bleeder adds useful capacity without complicating the rest of your workflow.
01 / FIELD USE
Set up wherever the work is
Keep it on the workshop bench, carry it in a service vehicle or bring it into the paddock. It is quick to position and ready to use wherever suspension work needs to be done.
02 / BLEEDING PROCESS
Work at the pace the damper needs
You decide how long each compression and vacuum phase lasts. Continue repeating until no more air is visible and the bleed is complete.
03 / EXTRA CAPACITY
Keep jobs moving when the shop is busy
Use it when the automatic station is occupied, unavailable or simply unnecessary for the job in front of you.
04 / APPLICATION RANGE
MTB, motorcycle and automotive
With the correct adapter and manufacturer service procedure, the Baldwin Shock Bleeder can be used across a wide range of serviceable dampers.
The equipment gap
A different tool for a different workflow and needs.
Some suspension workshops cannot imagine working without an automatic bleeder. Others cannot justify spending more than €1,500 on a machine they may only use occasionally and only in one place.
The Baldwin Shock Bleeder was developed to bridge that gap between expensive workshop equipment and outsourcing the job to another suspension specialist. It makes professional suspension bleeding available without large amount of investment.
The Baldwin Shock Bleeder was developed to bridge that gap between expensive workshop equipment and outsourcing the job to another suspension specialist. It makes professional suspension bleeding available without large amount of investment.
BALDWIN SHOCK BLEEDER
Consistently precise results with a smaller investment
Follow the Baldwin engineer’s instructions and continue the cycles until no more air is visible. Once the air is gone, the suspension unit is properly bled.
- Full control over every compression and vacuum cycle
- Direct handle presure feedback on oil level that is filled
- Compact, portable and straightforward to use
- No electrical power required or permanent installation
- Practical solution for race teams
Best fit: control, simplicity and flexible use
AUTOMATIC SHOCK BLEEDER
Built for higher-volume servicing
Automatic bleeders are valuable in specialist suspension workshops, mainly because they save time and reduce the risk of errors by less experienced staff.
- Less technician involvement during the bleeding process
- Larger footprint and difficult to move between locations
- Require a considerably higher initial investment, making them less accessible to smaller workshops
- Preset cycles run the same sequence regardless of how much air remains in the damper. If the technician does not repeat the program when needed, the final bleed may be incomplete.
Best fit: workshops where volume is the priority
ENGINEERED BY BALDWIN
25 years of engineering behind the Baldwin Shock Bleeder.
Boudewijn Evenhuis founded Baldwin Concepts after more than 20 years with the KTM Group and 25 years in mechanical, automotive and machine engineering. His work has included hydraulic systems and structural components for MotoGP and motocross projects, from initial requirements and system calculations through FMEA, FEM, detailed drawings and prototype sourcing.
●The Shock Bleeder was developed through the same full engineering process. Its design is patent pending.
25 YEARS
Mechanical, automotive and machine engineering
20+ YEARS
With the KTM Group
MOTOGP + MOTOCROSS
Top-level motorsport engineering
PATENT PENDING
Original Baldwin design
THE BALDWIN SHOCK BLEEDER
What you get with the Baldwin Shock Bleeder
The bleeder combines a 400 ml reservoir, hand-operated lever, locking shaft clamp and standard connection hardware in one service tool.
01
Manual vacuum and compression with direct feedback
Direct operation throughout the fill process, without automated presets or unattended cycles. Manual compression gives great feedback on how much is shock filled with oil. When shock is almost completly filled you will feel more resistance on handle.
02
400 ml oil capacity
A compact reservoir format intended for professional shock-servicing applications.
03
Handle-locking lever for steady vacuum
Lock the handle in position during vacuum cycles to maintain consistent vacuum without continuous force from the operator.
04

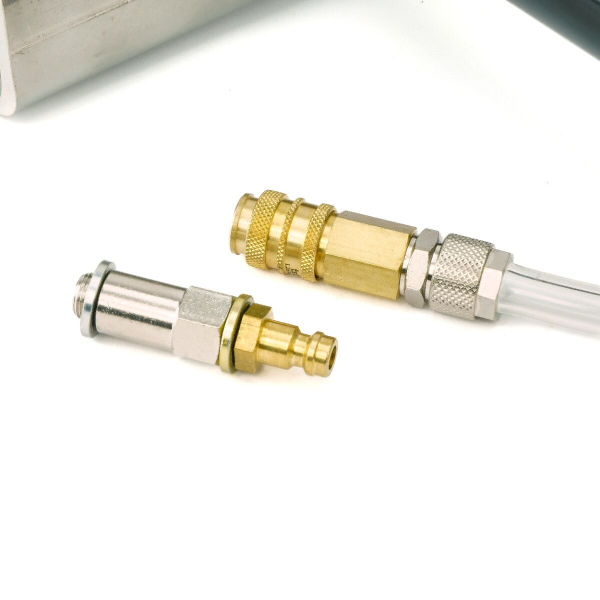

Connection hardware included
Male DN5 G1/8 connection, two G1/8 bonded seals and a G1/8 extension in the current offer.
How it works
Four steps from connection to a completed bleed.
Prepare the damper according to the manufacturer’s service procedure, then use the sequence below to introduce oil and remove the remaining air.
01
Prepare and connect
Secure the bleeder upright. Prepare the damper, fit the correct filling adapter, fill the reservoir with shock oil and connect the hose.
02
Apply compression
Press the button and move the lever to pump oil into the damper. Lock the lever in the lower position until air stops rising, then press the button to vent.
03
Pull and hold vacuum
Reverse the lever sequence to draw vacuum. Lock the lever in the upper position until air stops rising, then vent and release the clamp.
04
Rest and repeat
Allow the oil to settle between cycles. Repeat the compression and vacuum stages until no more air is visible, following the relevant service procedure.
Working environments
Keep suspension bleeding within your own operation.
Bringing the final bleed into your own process can reduce handovers, waiting time and dependence on another service provider.
Workshop
Add vacuum bleeding to your own service process. A practical fit for independent specialists who currently outsource the final bleed or do not need a high-volume automatic station.
Mobile service
Complete more of the rebuild at the customer or event location using the same bleeder and procedure you use at the workshop.
Race support
Service the damper between sessions and return the bike or vehicle to use without sending the unit away from the event.
Product demonstration
Watch a complete bleed simulation from setup to final check.
The demonstration shows the connection, oil fill, compression and vacuum stages, and how the remaining air is checked before the process is finished.
Product demonstration
BALDWIN SHOCK BLEEDER IN USE
See the Baldwin Shock Bleeder in use while bleeding a KTM MX shock. This video gives a practical look at the tool and the bleeding process on a motorcycle shock.
Choose your setup
One bleeder, or two with 15% off.
A single unit includes everything in the standard offer. Choose the two-unit package when you want separate bleeders for different oils, more than one work area or two technicians working at the same time.
ONE SHOCK BLEEDER
ONE MANUAL SHOCK BLEEDER
€479,99
Including VAT
The complete standard setup for one service position.
- One 400 ml Baldwin Shock Bleeder
- Integrated shaft clamp for holding each phase
- Male DN5 connector, G1/8
- Two bonded seals + G1/8 extension
- User manual and video demonstration
TWO SHOCK BLEEDERS
TWO MANUAL SHOCK BLEEDERS
€815,98
Including VAT
Two complete systems at 15% off the single-unit price.
- Two Baldwin Shock Bleeders
- Two sets of standard connection hardware
- Dedicate each tool to a different shock oil
- Lower risk of mixing different fluids
- Save €144,00

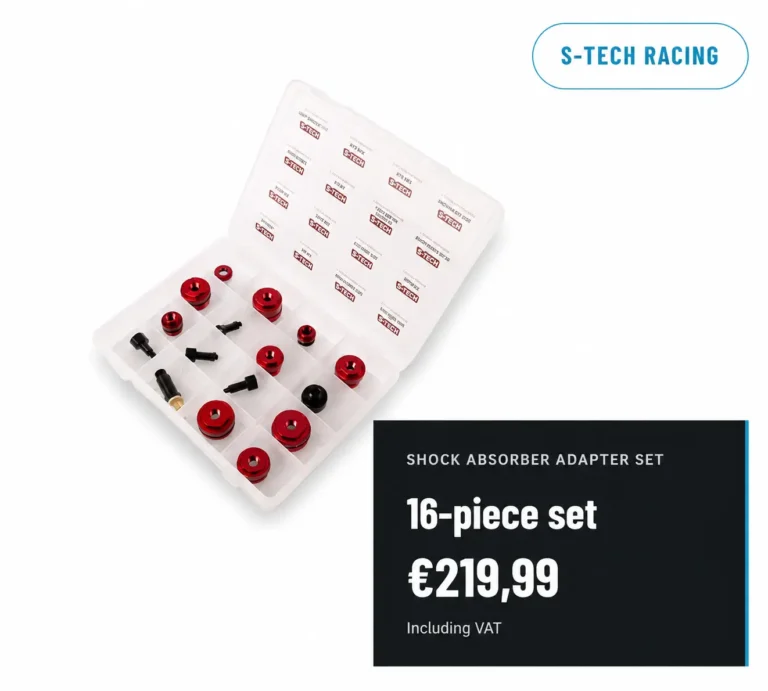

Pair with S-TECH filling adapter set
The S-TECH filling adapter set is made for connecting vacuum pumps and filling or bleeding devices to common road and off-road shock absorbers. Pair it with the Baldwin Shock Bleeder when the damper in front of you needs a different filling connection.
CUSTOMER FEEDBACK
What users say about the Baldwin Shock Bleeder
Feedback from customers who have used the Baldwin Shock Bleeder for suspension service.
Feedback from customers who have used the Baldwin Shock Bleeder for suspension service.
“The Baldwin Concepts Shock Bleeder is a great tool for bleeding shock absorbers. It does take a little more time than using an electric vacuum pump, but it’s a perfect tool when you’re on the road or don’t have access to an electric vacuum pump.”
Tim de Bot
TRS Suspension Service
“Today I filled an TTX-shock with your bleeder without any problems!
I think it’s easy!”
I think it’s easy!”
Peter Gastinger
Pema KG
Dealer partnerships
Bring the Baldwin Manual Shock Bleeder
to your market.
Baldwin Concepts is opening selected dealer partnerships for the Shock Bleeder. We are looking for distributors with established access to suspension workshops, race teams and technically capable riders. Contact us to discuss territory, wholesale terms, minimum order quantities and product support.
Technical information
Specifications and supplied hardware.
The operating details and standard components included with each Baldwin Shock Bleeder.
Operation
Manually operated compression and vacuum cycles
Oil capacity
400 ml
Included connection
Male DN5 connector, G1/8
Included seals
Two bonded seals, G1/8
Included extension
G1/8 extension
Handle
Manual lever with integrated shaft clamp
Primary applications
Workshop, home garage, mobile service and trackside shock bleeding
Frequently asked
Questions before you order.
Answers on experience level, applications, included hardware and the difference between manual and automatic bleeding.
It is designed for suspension technicians, independent workshops, mobile and race support teams, and experienced home mechanics who already understand shock servicing. You can be new to vacuum bleeding, but you should not be new to rebuilding suspension or mehanic work completely.
No. It performs the compression and vacuum bleeding stage of shock service. Disassembly, inspection, component replacement, oil selection, reassembly and gas charging must still be completed according to the shock manufacturer’s procedure.
A complete bleed is possible with either system. The difference is how the process is controlled. With the Baldwin Shock Bleeder, the technician watches the air leave and repeats the cycle until no more air is visible. An automatic station runs programmed cycles and may need to be restarted if air remains.
Manual operation keeps you involved in every compression and vacuum cycle. You can feel pressure changes, hold each phase with the shaft clamp and repeat it for as long as the shock requires. It also gives you a compact, portable tool without electricity, software or a permanent installation.
With the correct connection hardware, the Baldwin Manual Shock Bleeder can be used with serviceable MTB, motorcycle and compatible automotive shock absorbers that use compression and vacuum bleeding. Always follow the shock manufacturer’s service procedure.
No. Vacuum and pressure are created with the hand-operated lever.
Continue the compression and vacuum cycles until no more air is visible, then finish the service according to the damper manufacturer’s procedure.
One 400 ml Baldwin Shock Bleeder, a male DN5 G1/8 connector, two G1/8 bonded seals, a G1/8 extension, the user manual and the demonstration video.
Two units are useful for different shock oils, separate work areas or two technicians working at the same time. The two-unit package also saves 15% compared with buying two individually.
